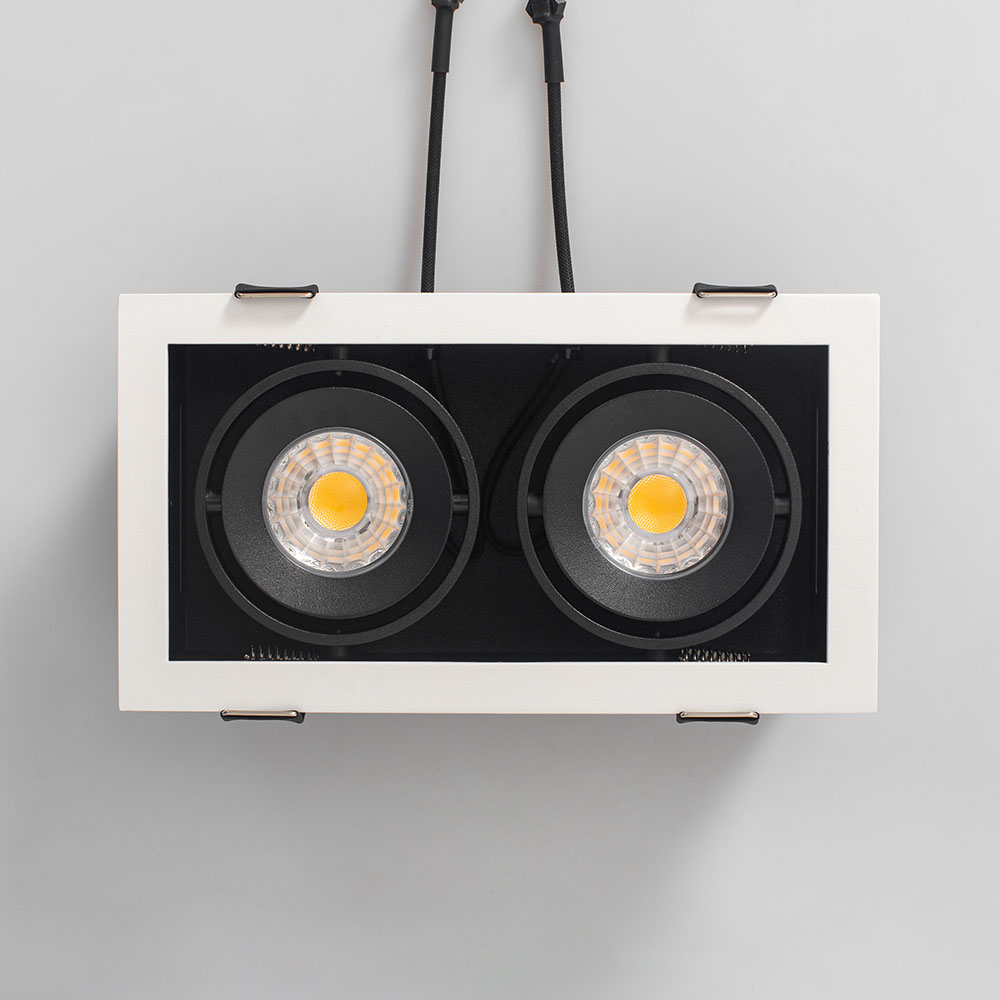

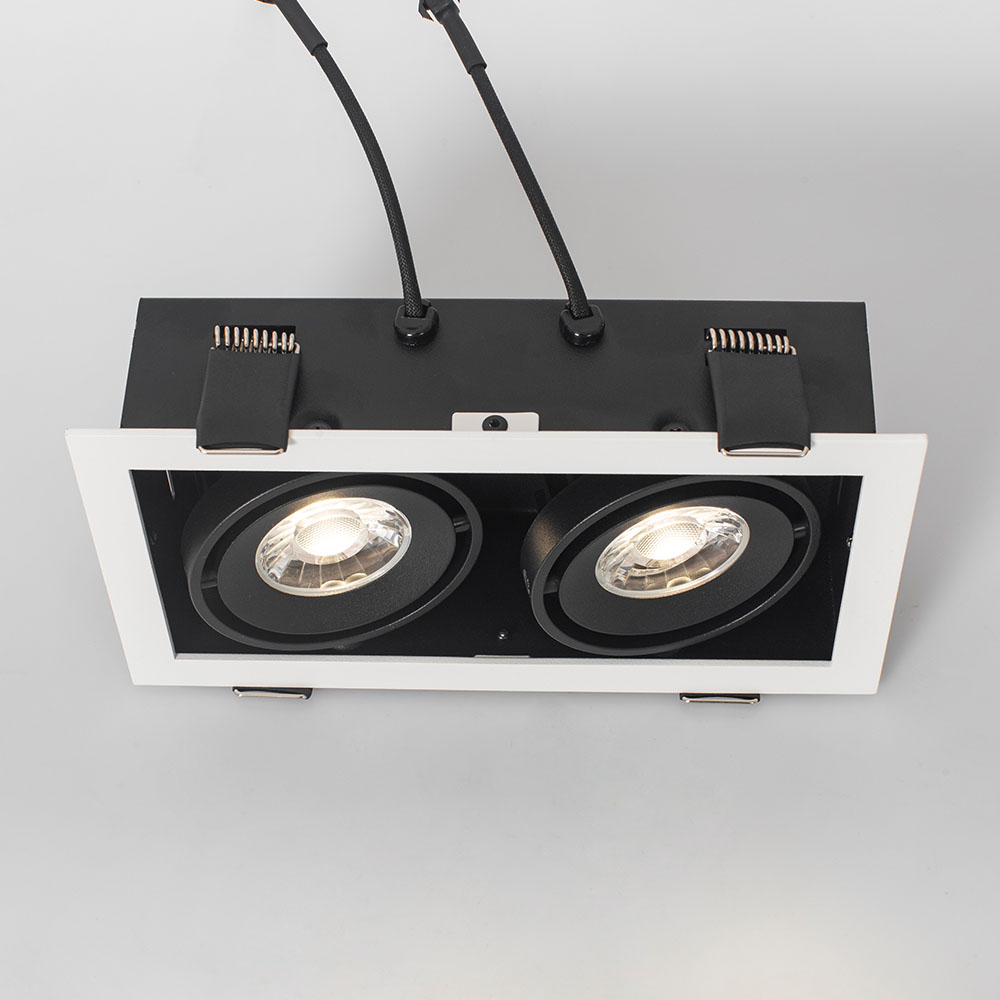

Cube Compact 190
Model: DL3233
Slim trim & cube fix design; Different beam angles;
Color: 101 Textured White
Spec overview
System Power
20.6W
Lumens(at 3000K)
1250lm
LED CCT
2700K/3000K/4000K
Beam
24°/38°/60°
Specifications
Light source
Cree CXA1507
Output (W)
2*9W (2*250mA 36V)
Total power consumption (W)
20.6W
Color temperature
2700K/3000K/4000K
CRI
90
Photobiological risk
RG1
Real Lumen
1250lm
Qty Leds
1pc
Lm/Real W
Min.75
Life Time
50.000h L80B20
MacAdam steps
2
UGR
<19
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
Resources
Cube Compact 190

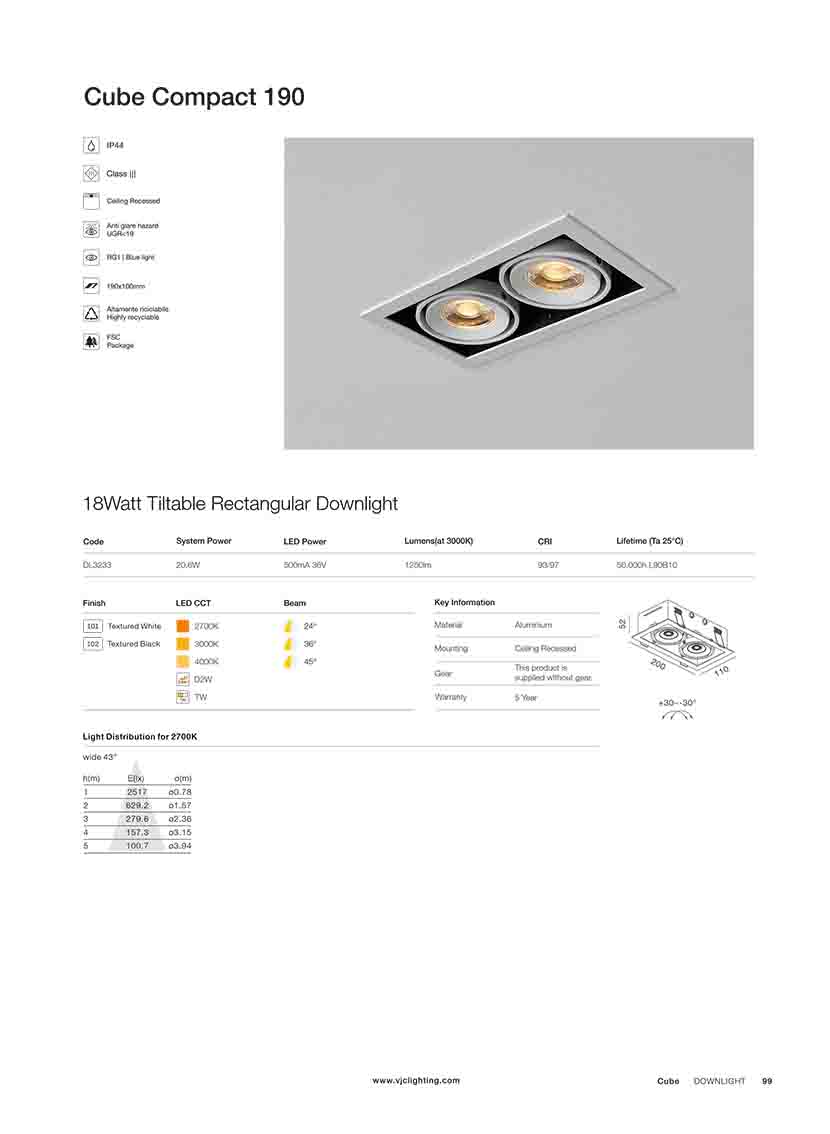

Catalogue
Cube Compact 190
Datasheet
Cube Compact 190

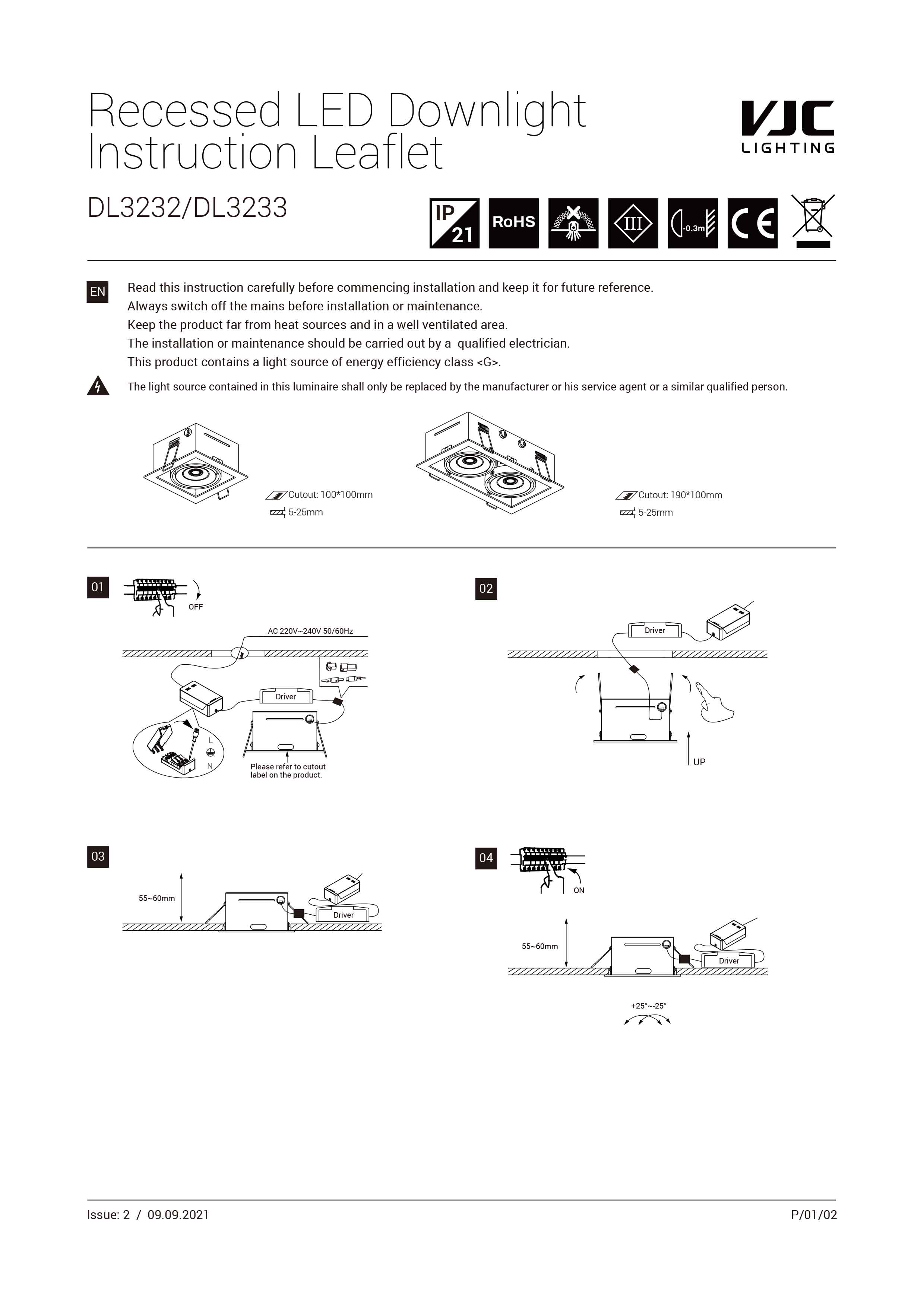

Instructions
Cube Compact 190
IES
