Retractable Trimless 25
Model: DL3811
Compact size; Downlight for indoor use; 30D tilt; Retractable Tube
Color: 101 Textured White
Spec overview
System Power
7.5W
LED Power
500mA 12V
LED CCT
2700K/3000K/4000K
Beam
18°/24°/36°/50°
Specifications
Light source
Bridgelux Chip
Output (W)
5.4W (150mA 36V)
Total power consumption (W)
6W
Color temperature
2700K/3000K/4000K
CRI
≥90
Photobiological risk
RG1
Real Lumen
350lm
Qty Leds
1pc
Lm/Real W
50lm
Life Time
50.000h L90B20
MacAdam steps
3
UGR
19
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
Resources
Retractable Trimless 25
Catalogue
Retractable Trimless 25
Datasheet
Retractable Trimless 25
IES
Retractable Trimless 25

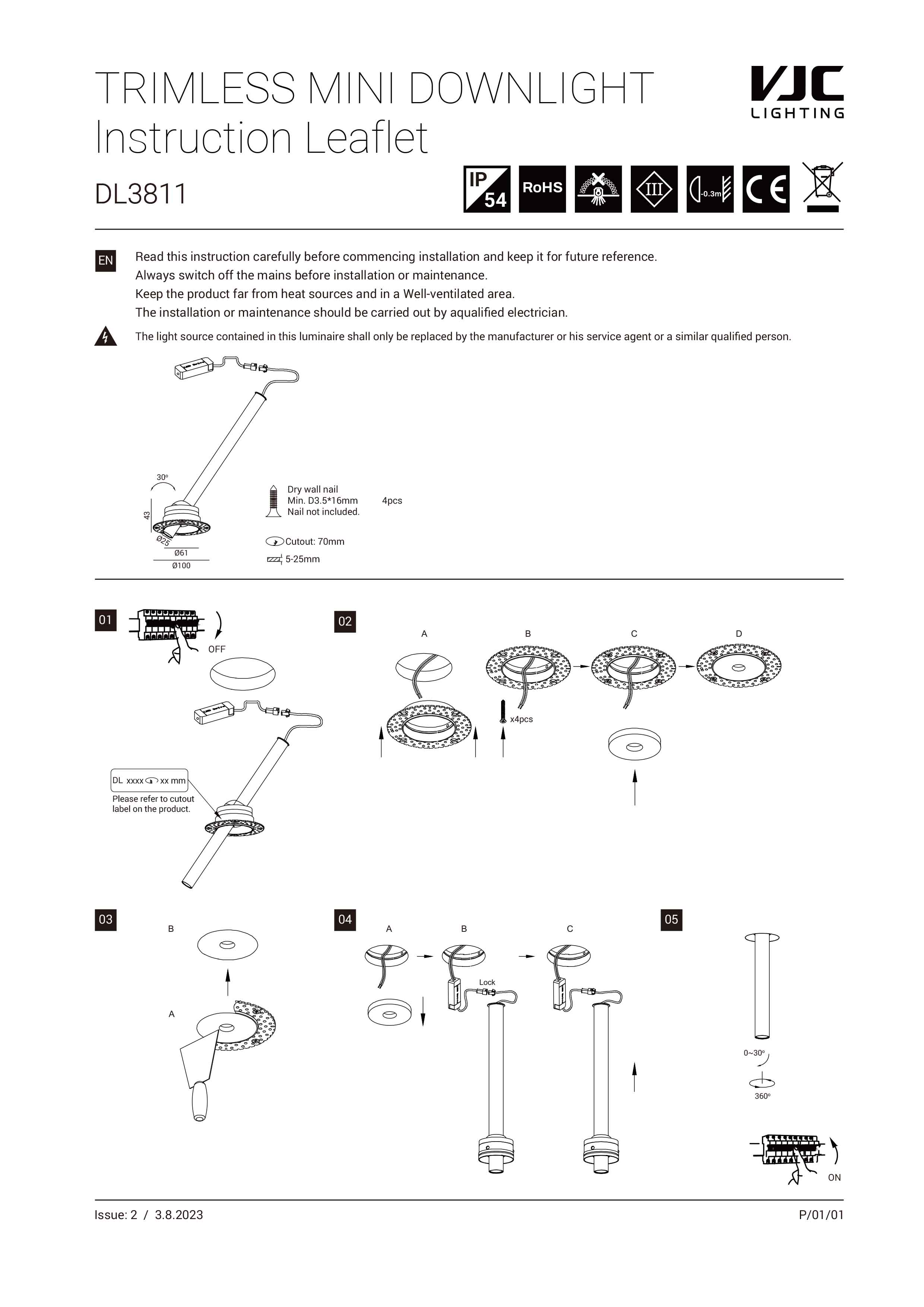

Instructions
