HV Track Pendant 80
Model: PL3030
High power pendant designed for shops & storage display areas; Supplied with or without add-on dual color lamp shield; On/off, phase cut, 0-10V, Dali driver available upon request; Surface or track mount installation methods; Structure material: Aluminium
Color: 102 Textured Black
Spec overview
System Power
32.4W
Lumens(at 3000K)
2700lm
LED CCT
Beam
Specifications
Light source
Bridgelux V13 850mA 36V
Power consumption (W)
35W
Color temperature
2700K/3000K/4000K
CRI
80/90
Photobiological risk
RG1
Real Lumen
2950lm
Qty Leds
1
Lm/Real W
84
Life Time
50.000h L90B20
MacAdam steps
3
UGR
19
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
Resources
HV Track Pendant 80
Catalogue
HV Track Pendant 80
Datasheet
HV Track Pendant 80

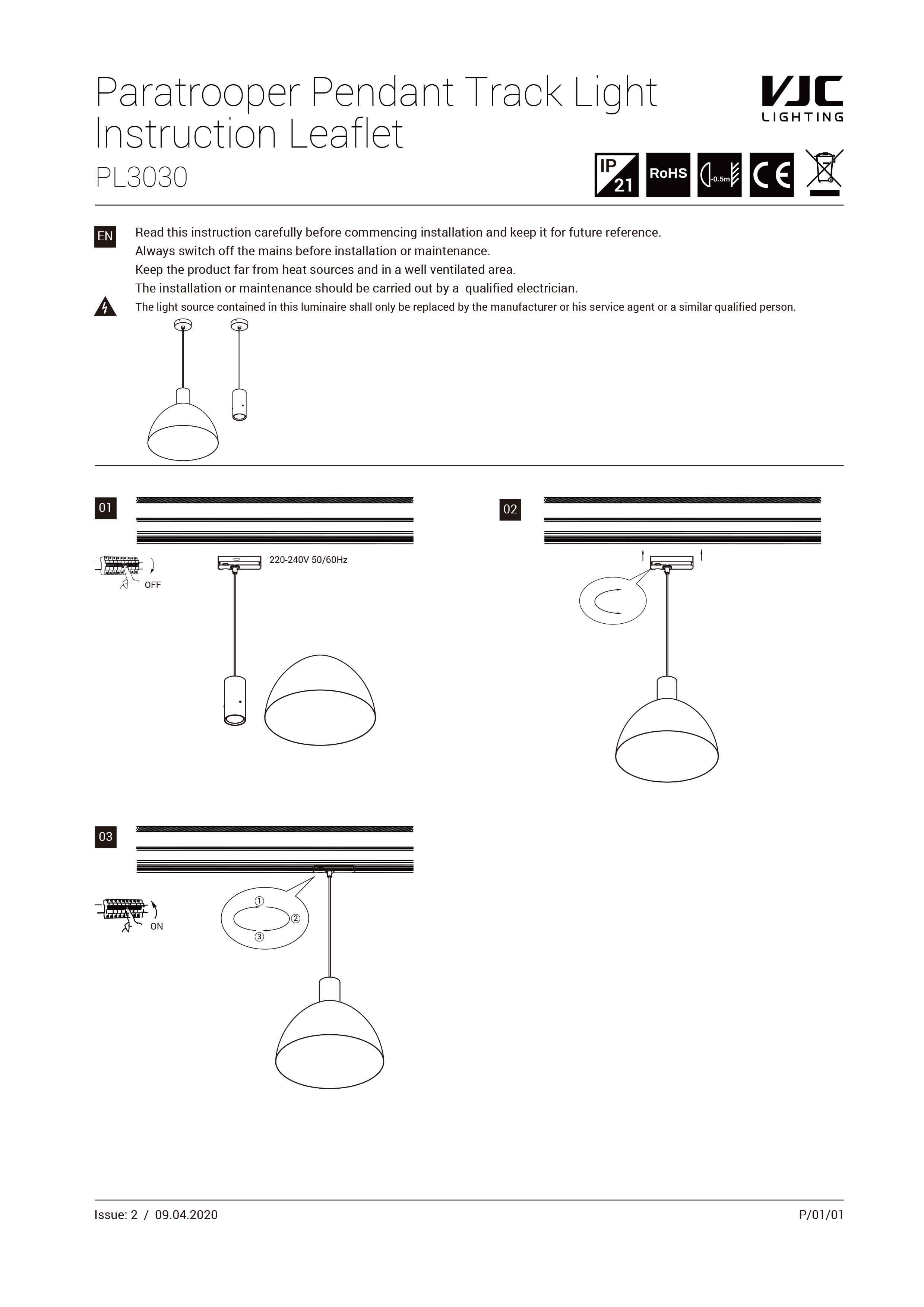

Instructions
HV Track Pendant 80
IES
