Mini Pinhole 40
Model: DL3422
Downlight for indoor use; Low UGR design; Slim trim design;
Color: 101 Textured White
Spec overview
Output (W)
250mA 36V 9W
Real Lumen
425lm
Color temperature
2700K/3000K/4000K
Beam
15°/24°/36°/50°
Specifications
Light source
Luminus CXM-6
Output (W)
250mA 36V 9W
Total power consumption (W)
10W
Color temperature
2700K/3000K/4000K
CRI
90
Photobiological risk
RG1
Real Lumen
425lm
Qty Leds
1
Lm/Real W
42.5
Life Time
50.000h L90B20
MacAdam steps
3
UGR
19
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
Resources
Mini Pinhole 40
Catalogue
Mini Pinhole 40
Datasheet
Mini Pinhole 40

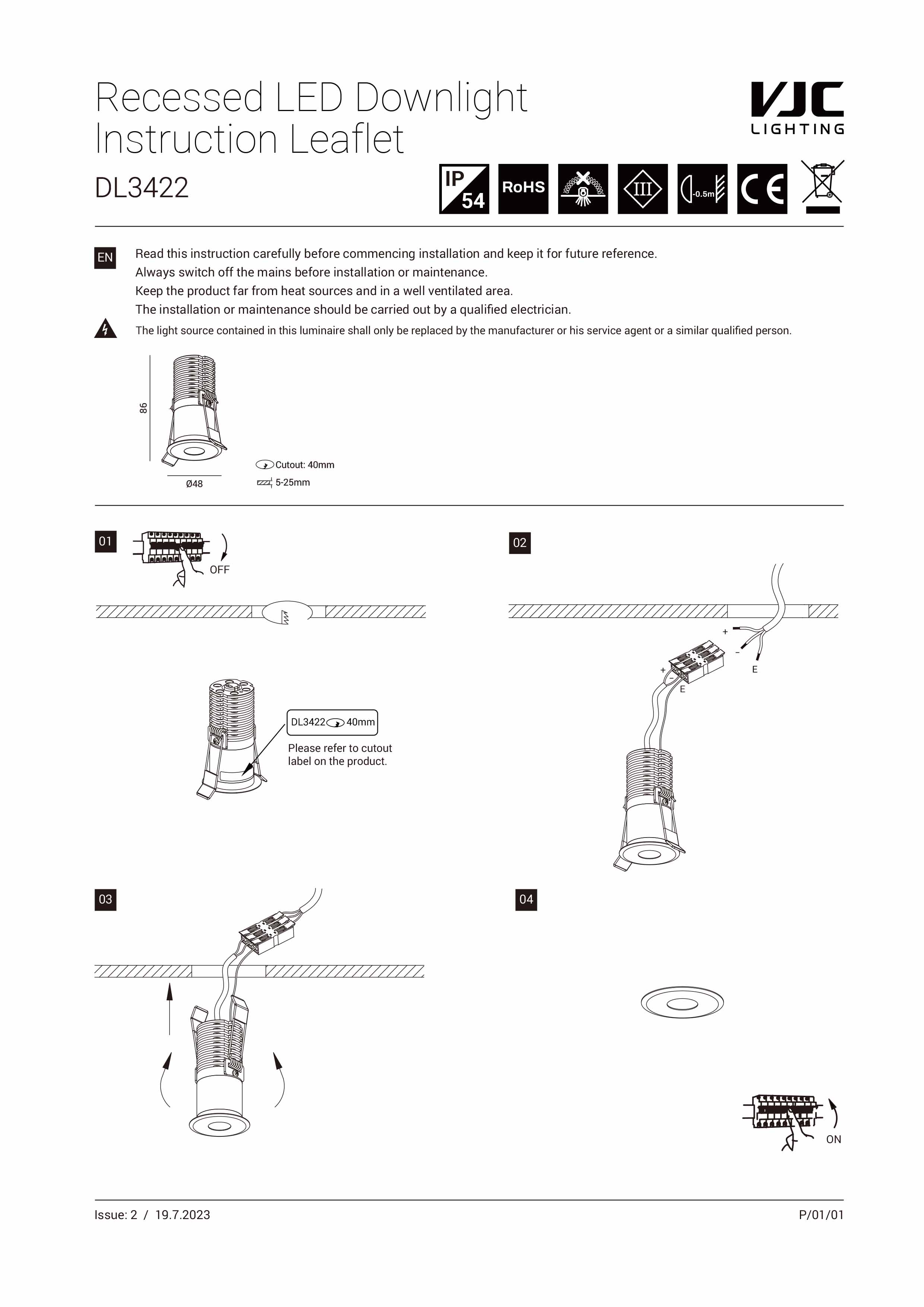

Instructions
Mini Pinhole 40
IES
