Commercial Premium Atom Square 135
Model: DL3685
Gyro Tiltable; Low glare interchangeable lens; Air Dynamic heatsink; Screw installation;
Color: 101 Textured White
Spec overview
System Power
28.3W
Lumens(at 3000K)
2519lm
LED CCT
2700K/3000K/4000K
Beam
15°/24°/36°
Specifications
Light source
Luminus CXM-14-30-90-36-AC32-F4-3
Output (W)
25.2W (700mA 36V)
Total power consumption (W)
30W
Color temperature
2700K/3000K/4000K
CRI
90
Photobiological risk
RG1
Real Lumen
2518.5lm
Qty Leds
1pc
Lm/Real W
95.61lm
Life Time
50.000h L80B20
MacAdam steps
3
UGR
14
Warranty
Damage caused by misuse
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
5 year warranty
Your product has a warranty that protectsagainst defects in the material and thefinishing of the product in accordance with it'smaintenance and usage instructions.
Resources
Commercial Premium Atom Square 135
Catalogue
Commercial Premium Atom Square 135
Datasheet
Commercial Premium Atom Square 135

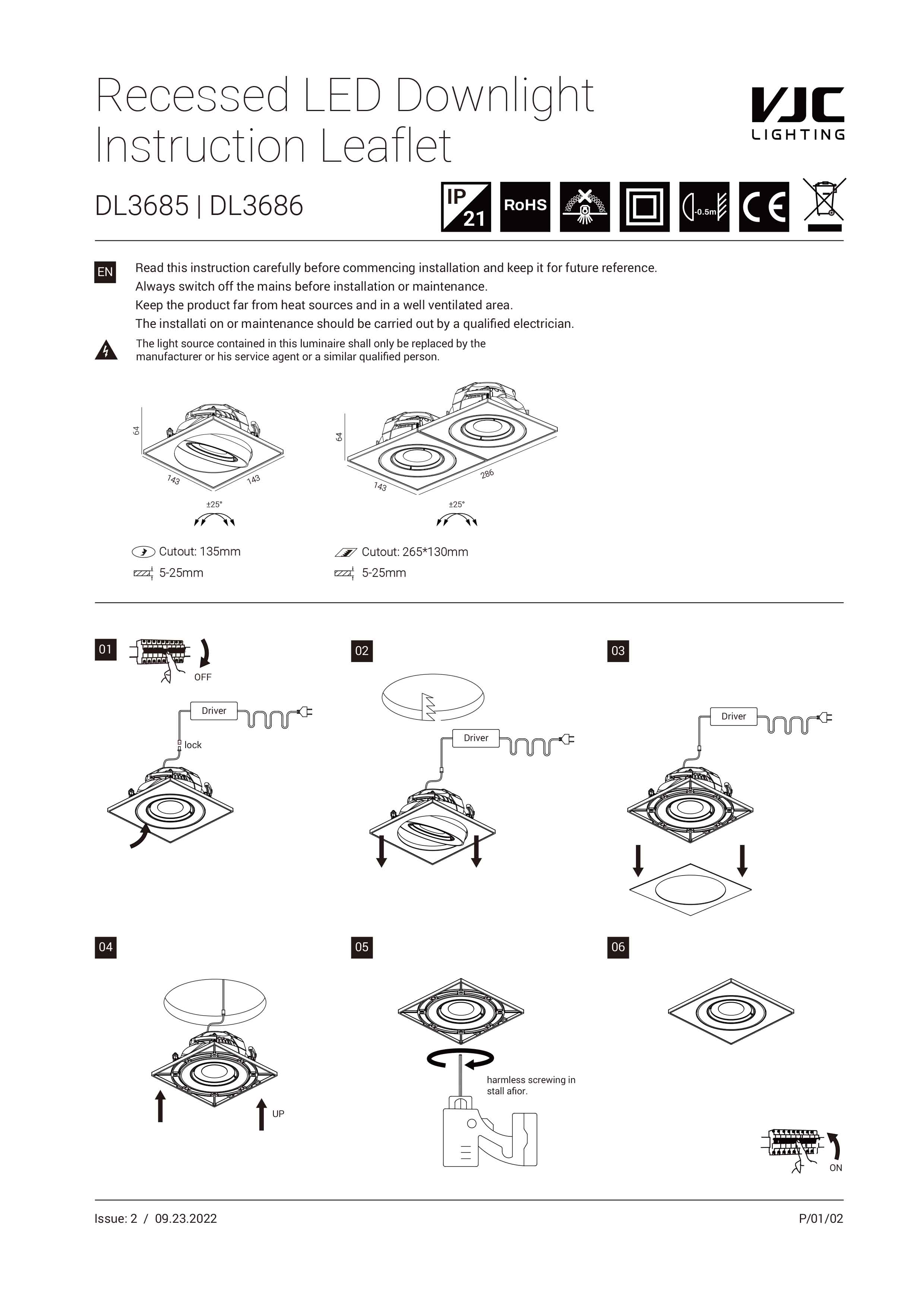

Instructions
Commercial Premium Atom Square 135
IES
